PurePower High Amp > Best Value
Back to pervious page
Lester FDPX2R5250
Lester FDPX2R5250a
Lester FDPX2R5250b
Lester FDPX2R5250c
Lester FDPX2R5250 Lester FDPX2R5250(a) Lester FDPX2R5250(b) Lester FDPX2R5250(c)

Penntex PX2 series 250amp replacement alternator.

Fitment: Replaces all Penntex PX2 externally regulated series alternators.

Our 6 phase technology high output alternators are designed to charge and recover your battery extremely quick and efficient. So if you are just replacing your worn out factory alternator or you are looking to upgrade because you want more amperage to maintain your accessory demands our Pure Power brand High Output 250amp Penntex replacement alternators are made in the USA with quality parts to perform under the most extreme conditions.

Note: This alternator is externally regulated. The regulator should be located in the vehicle.

Replaces PX2R, PX2R200, PX2R5A, PX2R5T, PX5R, PX5R200, PX5RD, PX5RD200, 5RD200, PX5RD230, X2R5, 24-204, 5RD230, 5RD-230, PX2250R5A, PX2R5, PX2RL, PX2RL5, PX2RL5T, PX520R PX520RD, PX525R, PX525RD, PX5R250, PX220R, PX220R5, PX220R5T, PX220RCA, PX220RCT, PX220RL, PX220RL5, PX220RL5T, PENTEX

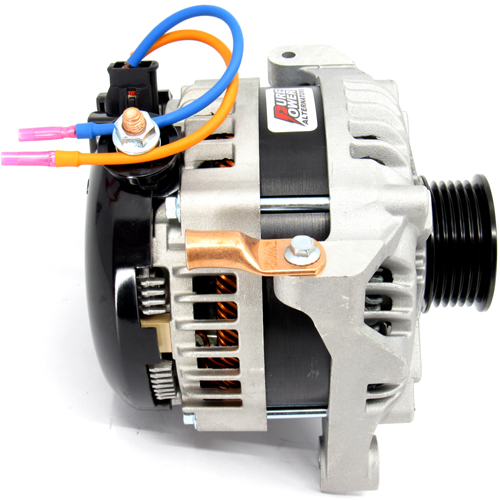

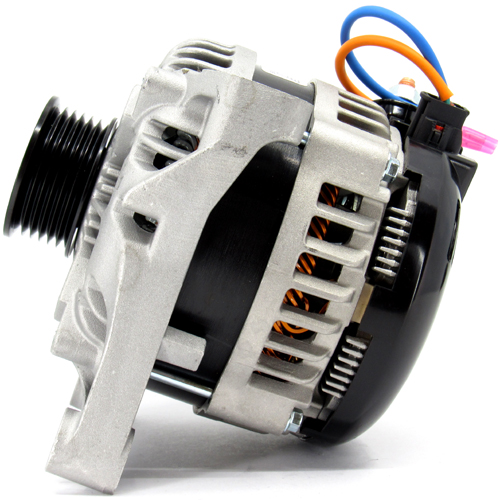

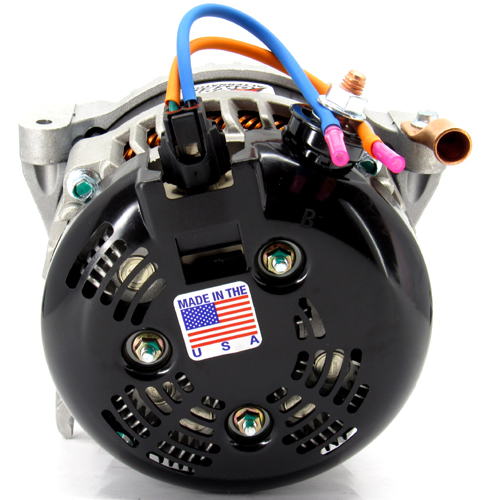

V MOUNT Penntex PX2/PX5 Replacement 250 Amp High Output Alternator, Externally Regulated

✓ In Stock
✓ Fast Shipping
✓ Free Tech Support
✓ Free 2Yrs Warranty
Factory Price: $481.00
Recommended Accesories
Premium Big 3, 1/0 AWG Cable Kit optimizes the performance of your new Pure Power High Output Alternator
(Specifications here)


See All Penntex units


Pure Power Series

01069034
Features
  • Installation Note:
    This unit comes equipped with a smaller alternator pulley, and we recommend using a ½ inch shorter drive belt for proper belt tension. For information and help to identify your current belt size and locating the ½ inch shorter belt size needed, refer to our Technical Notes, Reducing Your Vehicle's Belt Size | TAE (tucsonalternator.com). Our smaller drive pulley is not recommended for sustained use above 5,500 RPM engine speeds.
  • The highest charging output, at idle, in the industry
  • Amazing heat dissipation
  • Durable 6phase Hairpin stator technology
  • 12 70 amp avalanche diodes for durability
  • OEM SKF high heat bearings
  • OEM brushes and brush holder for extreme long life
  • Every alternator is endurance tested on the most advanced dyno tester in the industry, DV Electronics/Alt-98, to ensure the correct performance specs and durability.


Specs

Mounting type
Direct OEM Replacement
Output Voltage
EXTRNAL REGULATOR
Stator configuration
6 Phase Hairpin
Amperage
250 AMPS
Max amps hot
230
IDLE amps
190
IDLE amps hot
180
Pulley type
8 Groove Steel
Pulley Grooves
8
Rectifier
12 70 amp press fit diodes
Rectifier heatsink
Aluminum
Battery terminal size
8MM X 1.25 Copper
Warranty
24 Months Repair Warranty



Performance
